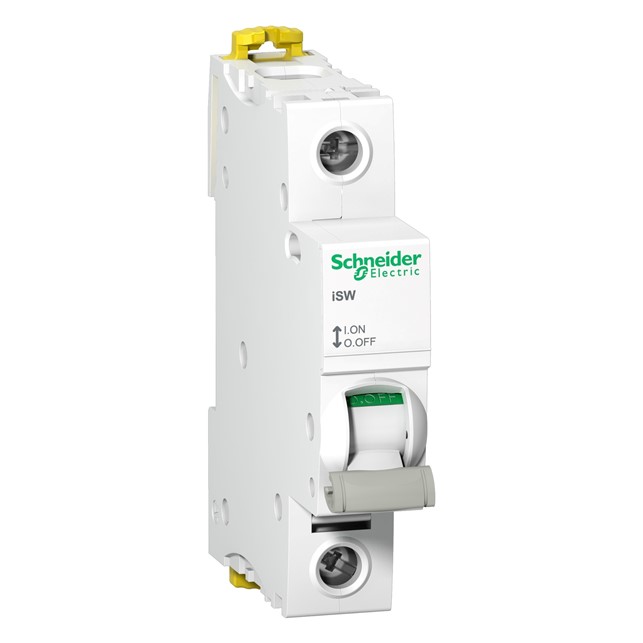

Schneider switch disconnector iSW – 1P – 40 A – 240 V (A9S65140)
Rp240.260
Deskripsi
Spesifikasi
| Range | Acti9 |
|---|---|
| Product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| device short name | ISW |
| Device application | Isolation Control |
| Poles description | 1P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
| [Ie] rated operational current | 40 A at 240 V AC 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 240 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 4.2 kA switch-disconnector alone |
| [Icw] rated short-time withstand current | 1260 A |
| [Ui] rated insulation voltage | 250 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
| 9 mm pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 73 mm |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Electrical durability | 15000 cycles |
| Connections – terminals | Tunnel type terminals (top or bottom) – <= 1 x 50 mm² – rigid Tunnel type terminals (top or bottom) – <= 1 x 35 mm² – flexible Tunnel type terminals (top or bottom) – <= 1 x 35 mm² – flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 3.5 N.m |
