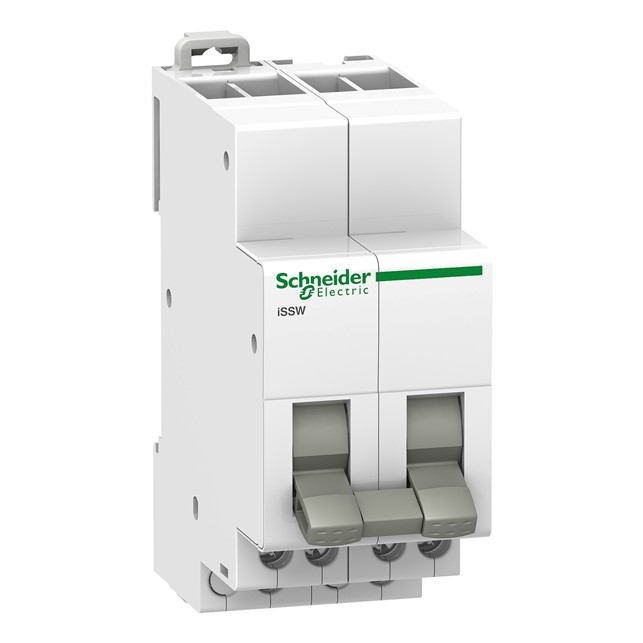

Schneider linear switch – iSSW – 2 C/O – 20A – 250 V AC – 3 positions (A9E18074)
Rp646.753
Deskripsi
Spesifikasi
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iSSW |
| Product or component type | Linear switch |
| device short name | ISSW |
| Device application | Electrical circuit control |
| Contacts type and composition | 2 C/O |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| standards | IEC 60947-5-1 IEC 60669-1 |
| [Ie] rated operational current | 20 A |
|---|---|
| Control type | Toggle 3 positions |
| marking | 1 – 0 – 2 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 4 |
| Height | 82 mm |
| Width | 36 mm |
| Depth | 75 mm |
| Colour | White |
| Electrical durability | AC-22: 30000 cycles cos Phi = 0.8 |
| Connections – terminals | Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
