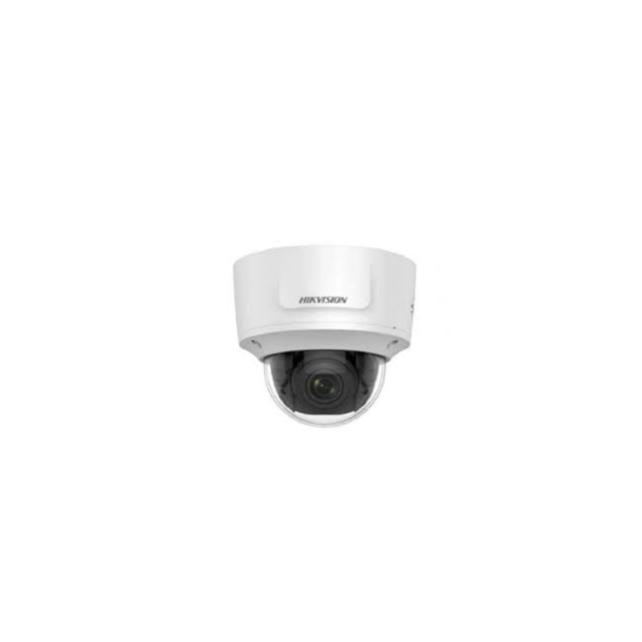

Deskripsi HikVision 2 MP High Frame Rate Varifocal Dome Network Camera (DS-2CD2725FHWD-IZS)
| Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Min. Illumination |
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Slow Shutter |
Yes |
| Wide Dynamic Range |
120 dB |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Lens |
| Focus |
Auto |
| Lens Type |
2.8 to 12 mm，Motorized |
| Focal Length & FOV |
Horizontal field of view: 105° to 35°,Vertical field of view: 56° to 20°,Diagonal field of view: 126° to 40.5° |
| Aperture |
F1.4 |
| Lens Mount |
Φ14 |
| Iluminator |
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
| Network |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host |
Up to 32 users,3 levels: Administrator, Operator and User |
| Client |
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Network Storage |
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Video |
| Max. Resolution |
1920 × 1080 |
| Main Stream |
· 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
· 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream |
· 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
· 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream |
· 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288)
· 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) |
| Video Compression |
· Main stream: H.265/H.264
· Sub-stream: H.265/H.264/MJPEG
· Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| H.264+ |
Main stream supports |
| H.265+ |
Main stream supports |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
Support 1 fixed region for main stream and sub-stream |
| Image |
| Day/Night Switch |
Day/Night/Auto/Schedule/Triggered by Alarm In |
| Image Enhancement |
BLC/3D DNR/HLC |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| SNR |
≥ 52 dB |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Interface |
| Video Output |
1Vp-p composite output (75 Ω) (For adjustment only) |
| On-Board Storage |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset |
Yes |
| Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Audio |
1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound |
| Alarm |
1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
DS-2CD2725FHWD-IZS_Datasheet_V5.6.0_20220609
