APC Easy UPS SRV 1000VA 230V(SRV1KI)
Rp7.882.794

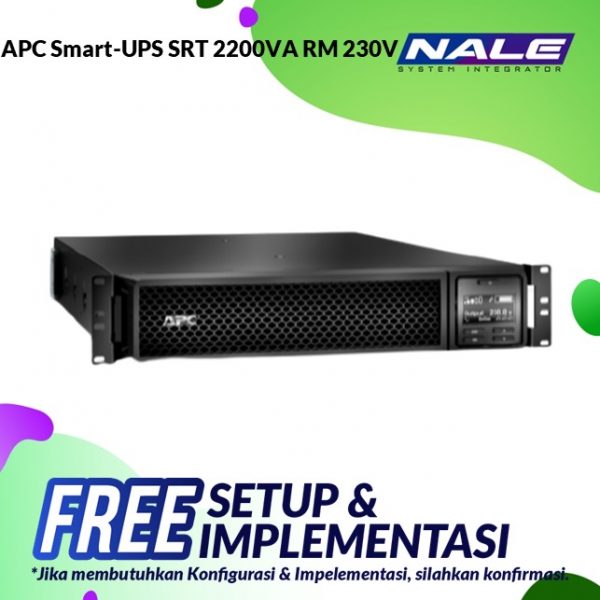

APC Smart-UPS SRT 2200VA RM 230V (SRT2200RMXLI)
Rp28.062.576
APC Smart UPS SRT Lithium Ion 1000VA RM 230V (SRTL1000RMXLI)
Rp54.298.940
- PF: 0,9
- Back up time Full Load: 31.6 min (900 watt)
-
Output power capacity: 900 Watts / 1.0kVA
- Output Connections :
(8) IEC 60320 C13 (Battery Backup)(8) IEC 320 C13 (Battery Backup)
-
Nominal Output Voltage: 230V
-
Nominal Input Voltage: 230V
- Input Connections : IEC 60320 C14
- Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card.
Deskripsi
Deskripsi APC Smart UPS SRT Lithium Ion 1000VA RM 230V (SRTL1000RMXLI)
Output |
|
| Max Configurable Power (Watts) | 900 Watts / 1.0kVA |
| Output Voltage Distortion | Less than 2 % |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double conversion online |
| Waveform type | Sine wave |
| Bypass | Internal bypass (automatic and manual) |
Input |
|
| Input frequency | 40 – 70 Hz Auto-sensing |
| Input voltage range for main operations | 50 – 150 40% load, 80 – 150V |
| Other Input Voltages | 220, 240 |
Batteries & Runtime |
|
| Battery type | Li-Ion (Lithium-Ion) |
| Typical recharge time | 6hour(s) |
| Nominal Battery Voltage | 48 V |
| Expected Battery Life (years) | 5 – 10 |
| Battery Charge Power (Watts) | 1.144kWatts |
| Battery Volt-Amp-Hour Capacity | 585 |
Communications & Management |
|
| Interface Port(s) | RJ-45 Serial, Smart-Slot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Audible and visible alarms prioritized by severity |
| Emergency Power Off (EPO) | Yes |
| Available SmartSlot™ Interface Quantity | 1 |
Surge Protection and Filtering |
|
| Surge energy rating | 340Joules |
Physical |
|
| Maximum Height | 128MM, 12.8CM |
| Maximum Width | 432MM, 43.2CM |
| Maximum Depth | 590MM, 59.0CM |
| Net Weight | 30.53KG |
Conformance |
|
| Approvals | CE, CE Mark, EAC, RCM, VDE |
| Standard warranty | 5 year repair or replace |
