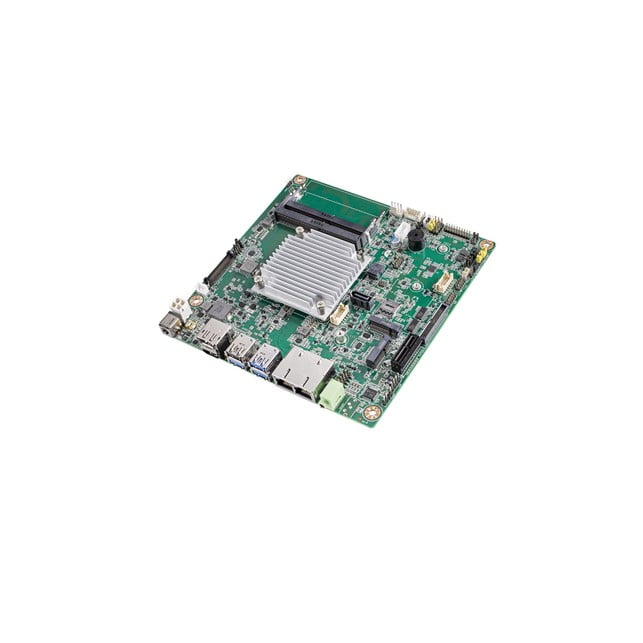

Advantech MINI-ITX w/DP++, HDMI, 2GbE, 6USB (AIMB-218J-S0A1E)
Deskripsi
| Category | Attribute | Value |
| Display | Controller | Intel Gen11 Graphic Engines |
| Display | DDI (HDMI/DVI/DisplayPort) | DP/HDMI |
| Display | eDP* | eDP supports up to 4096 x 2160 @ 60 Hz (eDP is BOM optional) |
| Display | LVDS | Dual channel 24-bit LVDS, max resolution up to 1920 x 1200 with 60Hz (Optional) |
| Display | Multiple Display | Triple |
| Display | Video Interface | DP, HDMI, LVDS(eDP), triple display ports |
| Form Factor | Form Factor | Mini-ITX |
| I/O | COM Port | 6(5 x RS-232, 1 x RS-232/422/485) |
| I/O | GPIO | 1, 8-bit GPIO |
| I/O | TPM | Optional |
| I/O | USB2.0 | 5 |
| I/O | USB3.0 | 3 |
| Memory | Max. Capacity | SODIMM up to 32GB |
| Memory | Socket | 2 x 260 pin SO-DIMM |
| Memory | Technology | DDR4 3200 MHz |
| Processor | BIOS | AMI 128 Mbit SPI |
| Processor | Core Number | 4 |
| Processor | CPU | Intel Celeron J6413 |
| Processor | CPU TDP | 10 W |
| Processor | Frequency | 1.8 GHz |
| Processor | L3 Cache | 4 MB |
| Storage | SATA | 1 x SATAIII (max data transfer rate 6.0 Gb/s) |
| Operating System | Linux | Yocto Linux |
| Operating System | Microsoft Windows | Yes |
| Environment | Non-Operational Temperature | -40~ 85° C |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Vibration Resistance | 3.5 Grms (non OP) |
| Power | Connector | DC jack, internal 4pin |
| Power | Power Adaptor | Yes |
| Power | Power Type | ATX, AT |
| Ethernet | Connector | RJ45 x 2 |
| Ethernet | Controller | RTL8111H |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 1 (Line Out) |
| Watchdog Timer | WatchDog Timer | Yes |
| Certification | EMC | CE/FCC Class B |
| Expansion | PCI Express x 1 | 1 (colay M.2 E key) |
| Expansion | Slot Type | 2 |
| Physical | Construction | with fanless design |
| Physical | Dimension (mm) | 170 x 170 mm |
| Physical | Weight | 1.04 kg (1.72 lb), weight of total package |
Informasi Tambahan
| Brand |
Advantech |
|---|
