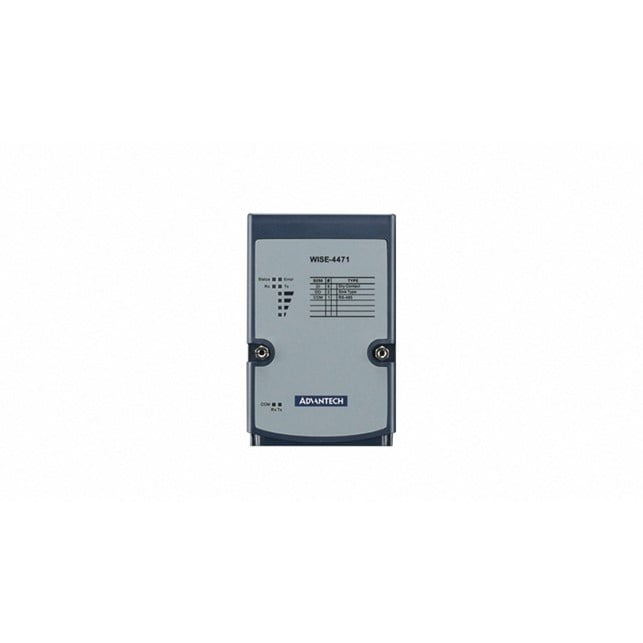

Advantech Cat. NB1/Cat. M1 Wireless Sensor Module (WISE-4471-UA)
- Global coverage of NB-IoT and LTE-M frequency bands
- 3GPP release 13 Cat. NB1/Cat. M1
- Application-ready I/O combination with optional M12 Connectors I/O
- Support MQTT, CoAP & LwM2M protocol
- Supports direct cloud service for IoT integration
Deskripsi
| Category | Attribute | Value |
| General | Connectors | 1 x Plug-in screw terminal, 1 x M12 4-pin code-A male |
| Hardware | Certification | CE, NCC, FCC Class A, IC |
| Hardware | LED Indicators | Status, Error, Tx, Rx, Signal Level |
| Hardware | Power Consumption | 1.7 W @ 24 VDC |
| Hardware | Power Input | 10~50 VDC |
| I/O Interface | USB Ports | 1 x Micro-B USB |
| Environment | Ingress Protection | IP65 |
| Expansion Function | SIM card slot | Micro SIM |
| Power Requirements | Input Voltage | 10~50 VDC |
| Mechanical | Dimension (W x H x D) | 70 x 112 x 38 mm |
| Mechanical | Mounting | DIN 35 rail, Wall, Pole, Stack |
| Mechanical | Weight (Net) | 0.5 kg |
| Wireless Communication | Frequency Band | LTE Band 2, 3, 4, 5, 8, 12, 13, 20, 28 |
| Wireless Communication | Standard(Technology) | NBIoT, CatM |
Informasi Tambahan
| Brand |
Advantech |
|---|
